PSA 3L 5L 10L 93% 96% Medical household commercial high-concentration oxygen machine oxygen generator

224 orders
15-40 days (ships out within 5 business days)
Total Price:
Best price guarantee
View cart
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

Product introduction:
Product name: High Concentration Oxygen Machine
Cooling way: Air cooling
Cooling Fan: 15050 Customized high speed cooling fan

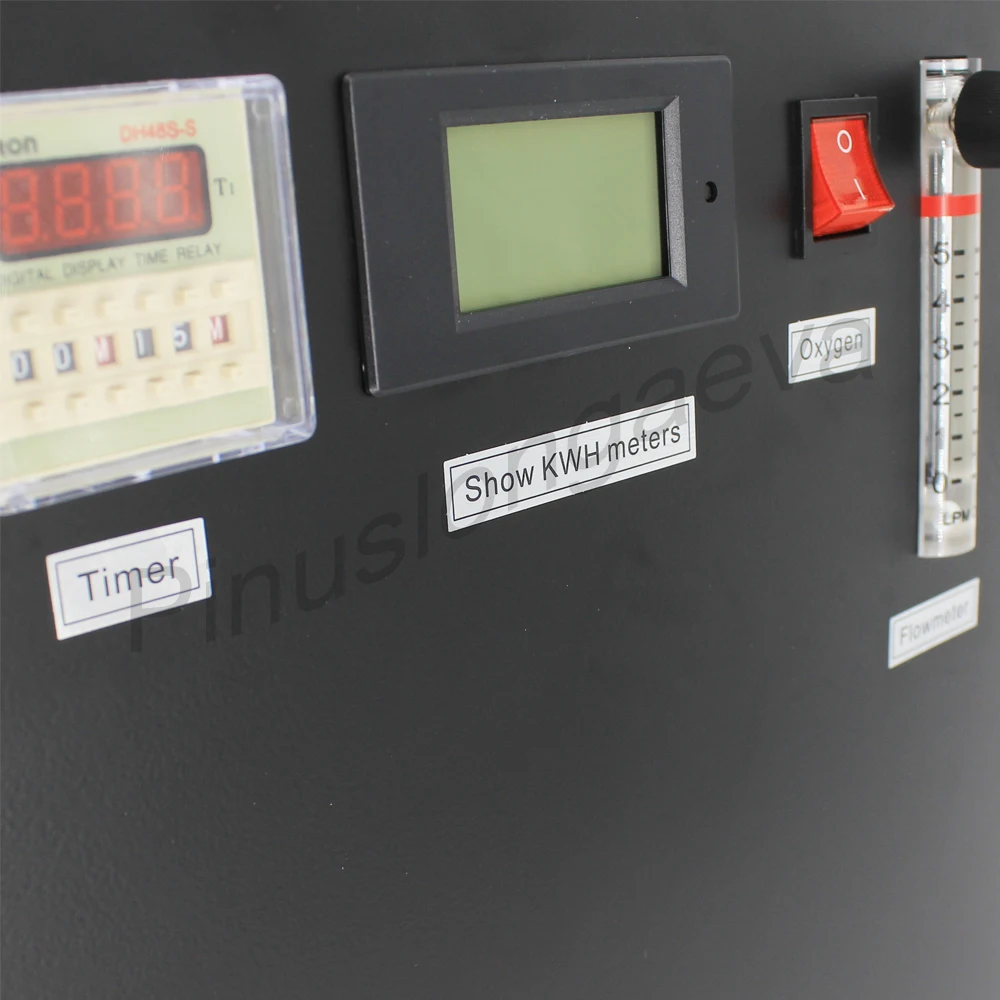

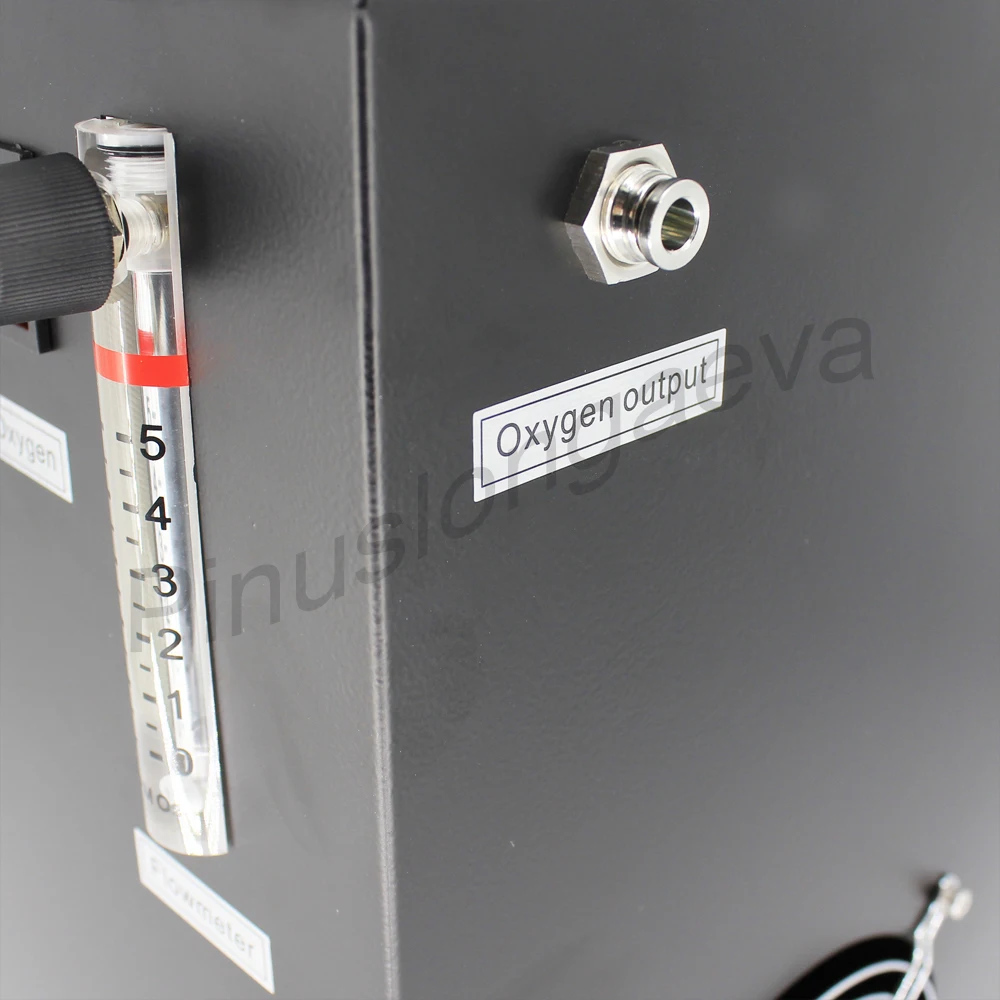

Flowmeter: Built-in
Intake requirements: Dry, oil-free
Intake pressure: 170kpa-250kpa (Built-in air compressor)
Outlet pressure: 50kpa (If you need to increase the pressure, please contact us)
Oxygen concentration: 96%
After 3000 hours: >93%
Molecular sieve: New type oxygen sieve – lithium low silicon (imported 0.5mm)
Ambient temperature: <40 degrees Celsius
Humidity: <85% RH
Mechanical impurity of compressed air in: <20mg/m3
Product application: Oxygenation, medical treatment
Characteristic: Smaller, higher oxygen concentration, no consumables, high efficiency
Service life / Warranty: More than 15000 hours / 2 years
Customized: Can be customized
Equipment Inspection Standard:
Design and Manufacturing Conditions of Oxygen Making Machine: JB/T6427-92 Pressure Vessel
Design specifications: GB150-89
Manufacturing standard: GB150-89
Flaw detection standard: JB-4730-94
Equipment Painting, Packaging and Transportation: JB2536, GB/T13384
Noise measurement of silencer: JB/T6427-92
Pipeline Design and Installation: JB5902
Identification Standard of Oxygen Meter: JJ365-1998
Flowmeter Design and Manufacturing Standards: JB/T6844-1993
If you need more oxygen, you can connect them in parallel, and we can send you free connectors:
6L oxygen machine = 2pcs 3L oxygen machine.
8L oxygen machine = 1pc 5L oxygen machine + 1pc 3L oxygen machine.
20L oxygen machine = 2pcs 10L oxygen machine.
30L oxygen machine = 3pcs 10L oxygen machine.

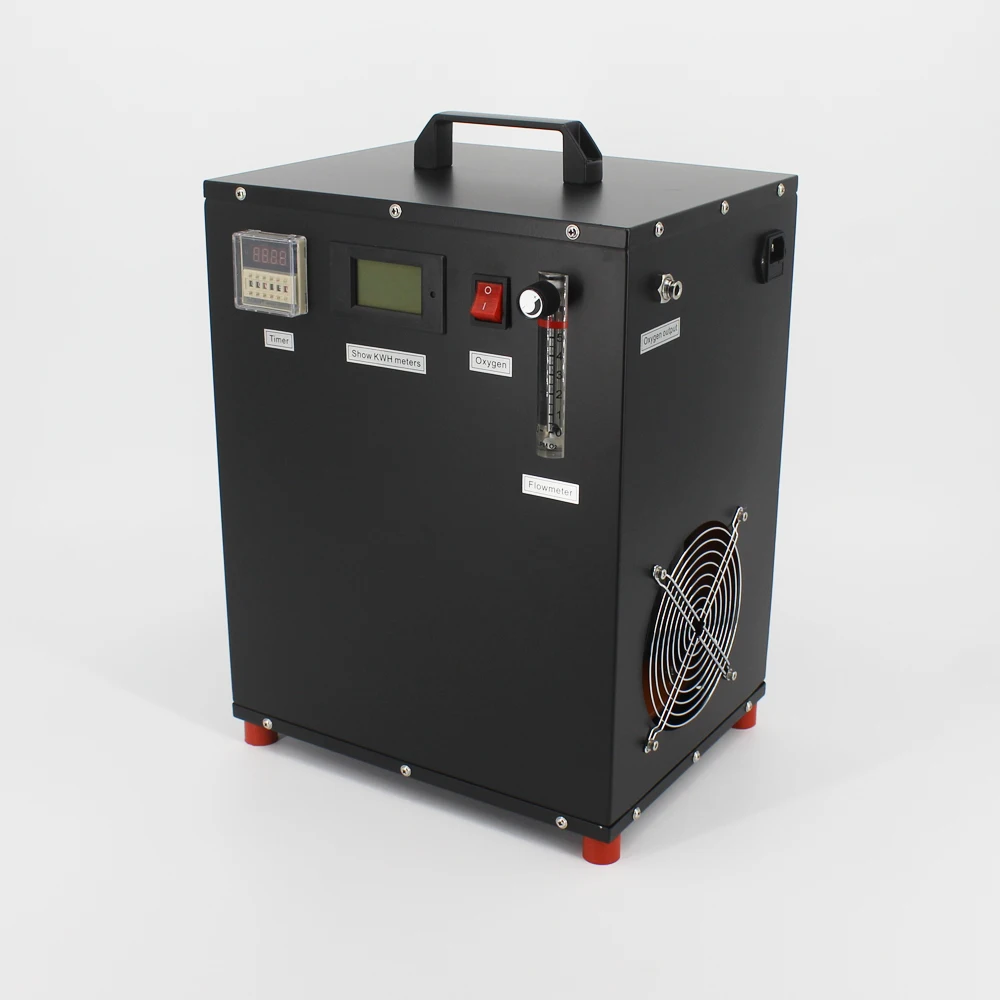

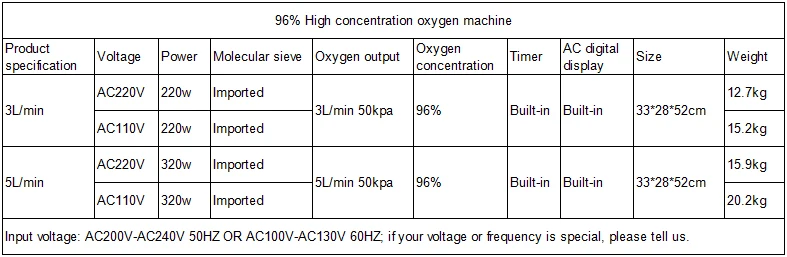

3L/min 5L/min Oxygen machine:
Free: 1pc power cord + 2M 4*6mm PU tube, 1pc air stone, 2pcs reducer union (4-6mm, 6-10mm).
This is the complete oxygen machine.

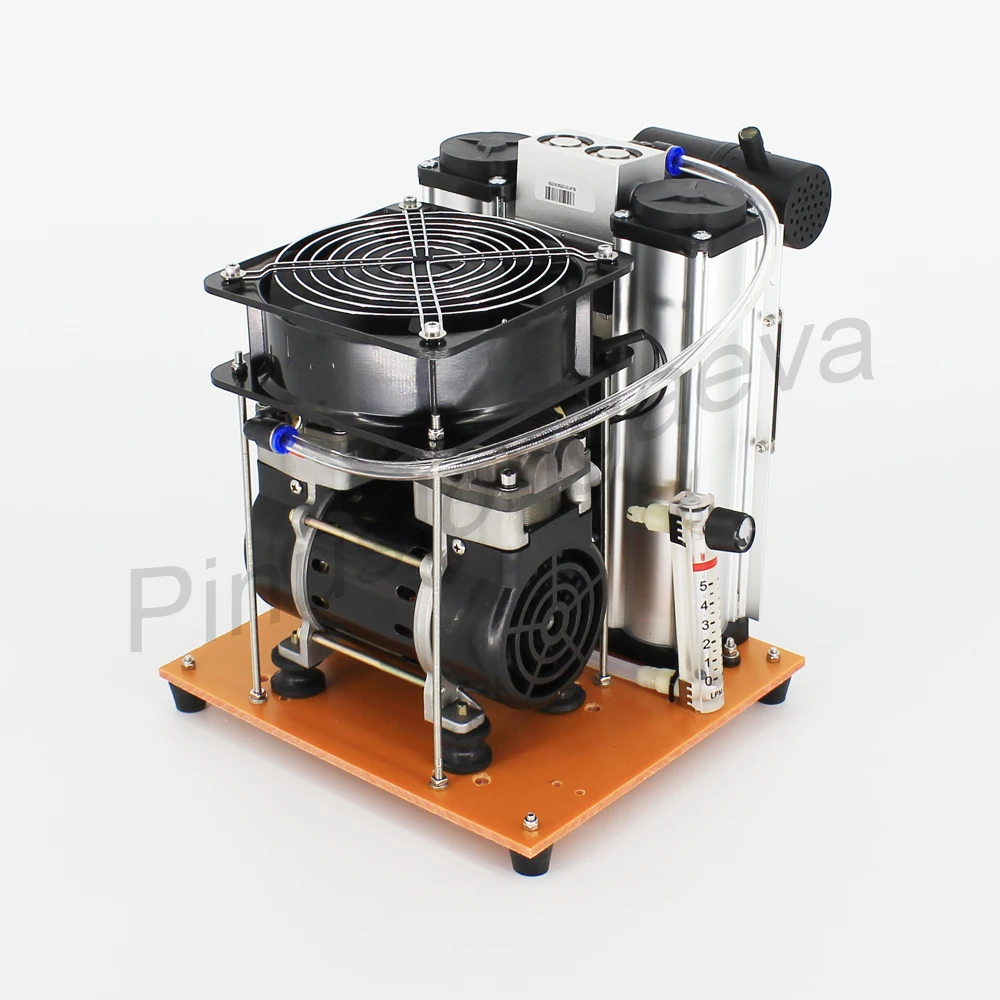

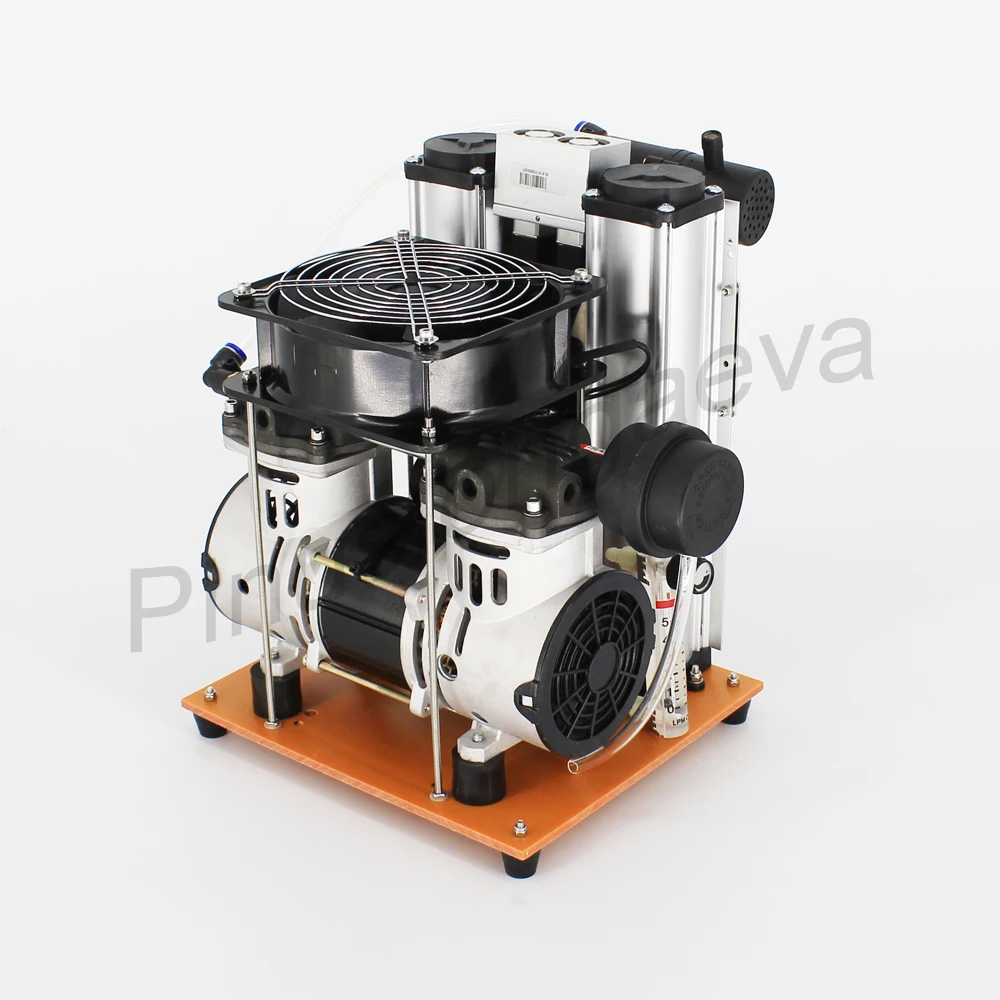

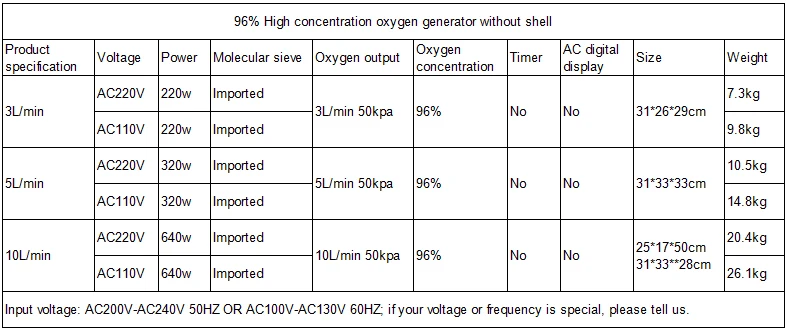

3L/min 5L/min Oxygen machine (Without shell):
Free: 1pc power cord + 2M 5*8mm PU tube, 1pc air stone, 2pcs reducer union (6-8mm, 8-10mm).
This is the complete oxygen machine, but there’s no shell, when you connect the power cord, it will continue to produce high concentrations of oxygen.

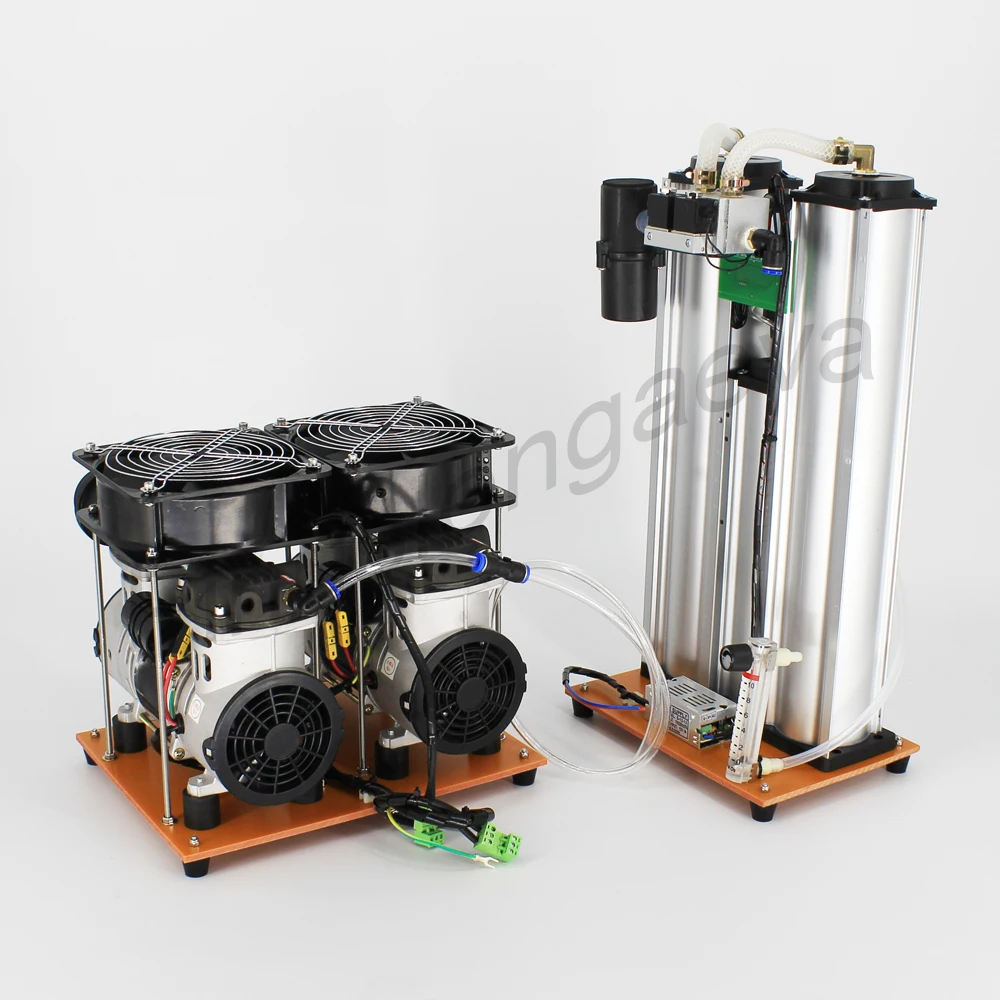

3L/min 5L/min 10L/min Oxygen generator parts:
Free: 1pc power cord + 2M 5*8mm PU tube, 1pc air stone, 2pcs reducer union (6-8mm, 8-10mm).
Oxygen generator and air compressor, please install oxygen generator vertically, when you connect the power cord, it will continue to produce high concentrations of oxygen.
We suggest you install AC or DC 15cm high-speed cooling fan to cool the air compressor.
3L/min 5L/min 10L/min Oxygen generator:
If you only buy oxygen generator, please use the right air compressor, this is very important.
#1: Air input temperature: <45 degrees Celsius.

#2: Air inlet joint: 12mm. (We suggest you use the 8*12mm PU tube)

#3: 3L/min: 170-200kpa 35-42L/min
5L/min: 180-220kpa 60-70L/min
10L/min: 200-250kpa 110-130L/min
Air compressor:
This is not an oxygen machine. This is an air compressor. It will provide enough air for the oxygen machine.
230W 200kpa 42L/min (For 3L oxygen generator)
380W 200kpa 70L/min (For 5L oxygen generator)
750W 200kpa 130L/min (For 10L oxygen generator)

If you have any questions before you place an order, please leave a message to us and we will reply to you as soon as possible.

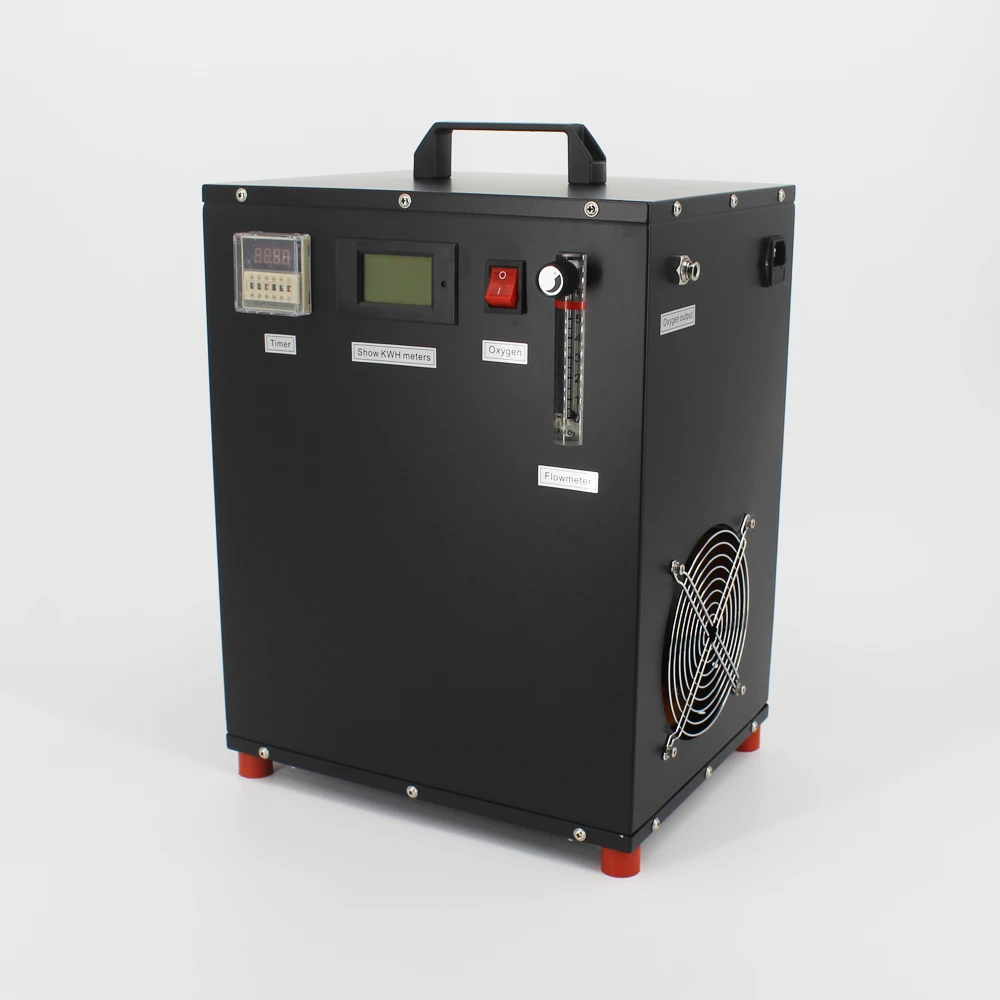

3L/min and 5L/min Oxygen machine:
3L/min Oxygen machine (Without shell):
5L/min Oxygen machine (Without shell):
10L/min Oxygen machine (Without shell):
